Place Recognition Example:

Abstract

Recognizing places from an opposing viewpoint during a return trip is a common experience for human drivers. However, the analogous robotics capability, visual place recognition (VPR) with limited field of view cameras under 180 degree rotations, has proven to be challenging to achieve. To address this problem, this paper presents Same Place Opposing Trajectory (SPOT), a technique for opposing viewpoint VPR that relies exclusively on structure estimated through stereo visual odometry (VO). The method extends recent advances in lidar descriptors and utilizes a novel double (similar and opposing) distance matrix sequence matching method. We evaluate SPOT on a publicly available dataset with 6.7-7.6 km routes driven in similar and opposing directions under various lighting conditions. The proposed algorithm demonstrates remarkable improvement over the state-of-the-art, achieving up to 91.7% recall at 100% precision in opposing viewpoint cases, while requiring less storage than all baselines tested and running faster than all but one. Moreover, the proposed method assumes no a priori knowledge of whether the viewpoint is similar or opposing, and also demonstrates competitive performance in similar viewpoint cases.

Background: The Visual Offset

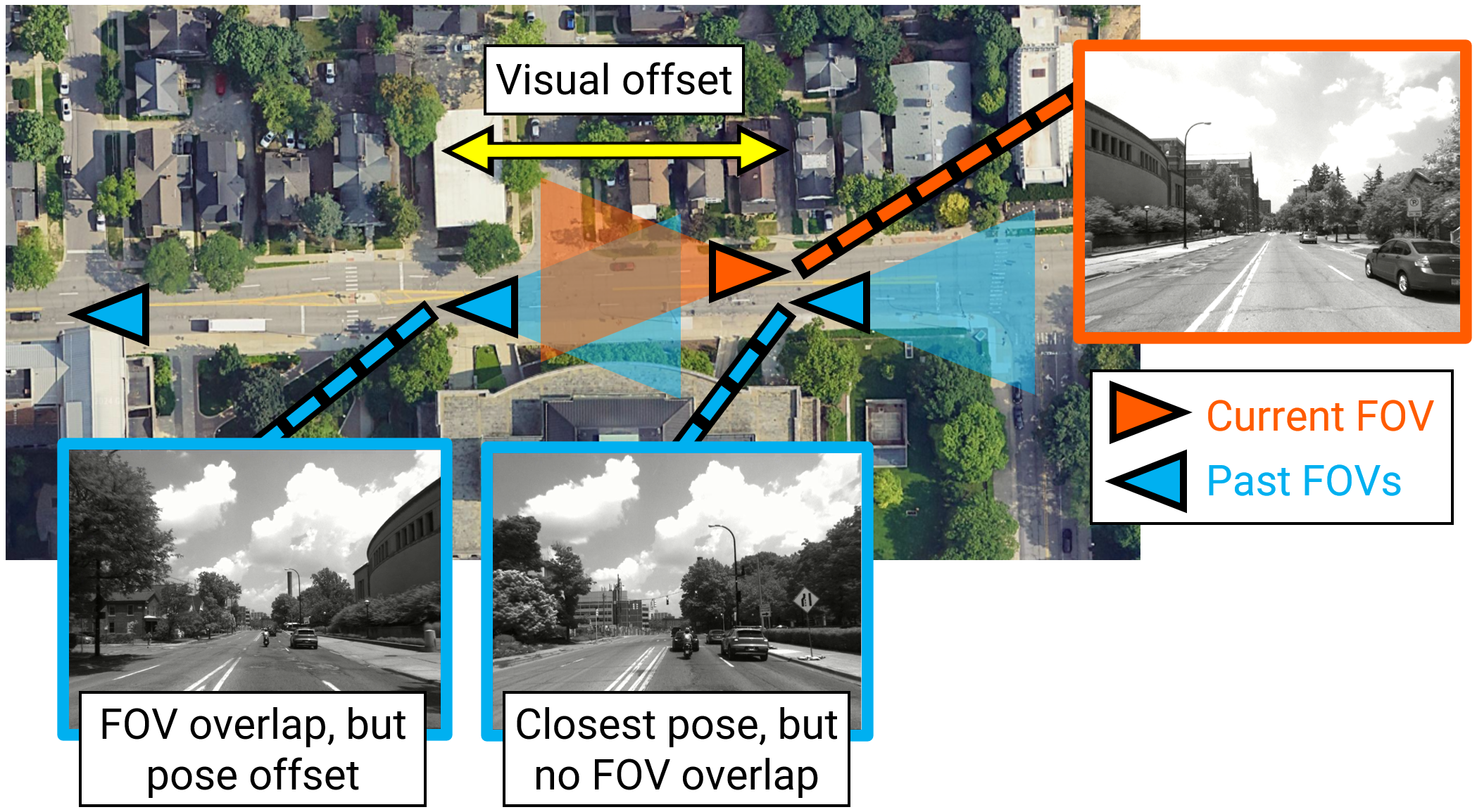

The goal of place recognition is typically to match a query image with the reference image captured at the physically closest location. This is especially challenging in opposing viewpoint place recognition because the physically closest reference may share no visual information with the query while the reference with the greatest visual overlap is likely separated by a significant distance, called the visual offset. This offset may be difficult to overcome in subsequent relative pose estimation (which is necessary for loop closure in SLAM). SPOT avoids the visual offset problem by forming place descriptors that capture the structure surrounding the camera, rather than being limited to the field-of-view (FOV) of a single image.

System Overview

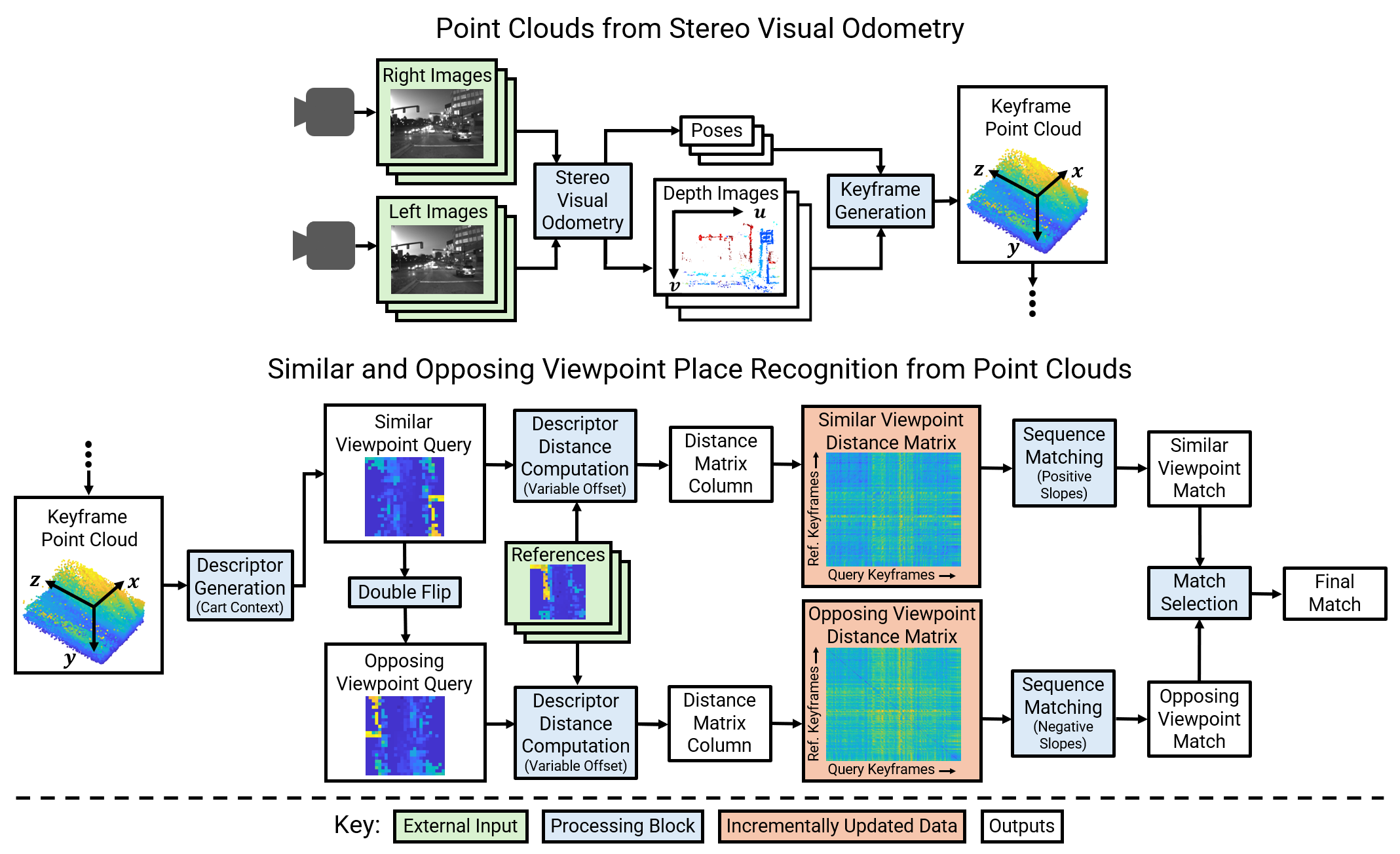

The SPOT system takes stereo images as input and outputs place recognition matches at selected keyframes. The entry point of the system is a stereo visual odometry algorithm, SO-DSO, which produces estimated poses and sparse depth images with absolute scale. These estimates are accumulated to form point clouds at selected keyframe poses. Next, Cart Context query descriptors are formed from the point clouds, providing coarse, bird's-eye view representations of the structure surrounding the keyframe poses. The query descriptors are flipped about both axes to yield second versions that are similar to that which would have been produced from the opposing view. Distances are computed between both versions of each query and all references, using a variable offset technique that lends robustness to lateral shifts. The distances from the two versions of each query contribute to separate distance matrices that individually capture similar and opposing viewpoints. Sequence matching is performed with each distance matrix and the final reference match is selected from the results.

Selected Results

We tested SPOT on the NSAVP dataset, which includes two routes driven in both the forward and reverse directions. The sequences capture a variety of lighting conditions, scene types (urban vs. suburban), traffic conditions, road widths (two vs. four lanes), and lateral gaps between opposing lanes (e.g., medians and turns lanes). We form reference descriptor databases for each route from sequences collected at noon (using 6.7 and 7.6 km subsets of the R0 and R1 routes respectively), and test with queries from all other sequences. The results from the R0 route are shown below. The plots are organized into similar and opposing viewpoints and the plot titles denote the time of day the queries were collected. SPOT outperforms the baselines in opposing viewpoint cases and avoids the visual offset, performing well even with a 15 m localization radius. SPOT is also competitive in similar viewpoint cases and is robust to a variety of lighting conditions, except poorly lit areas at night where the surrounding structure is difficult to observe.
