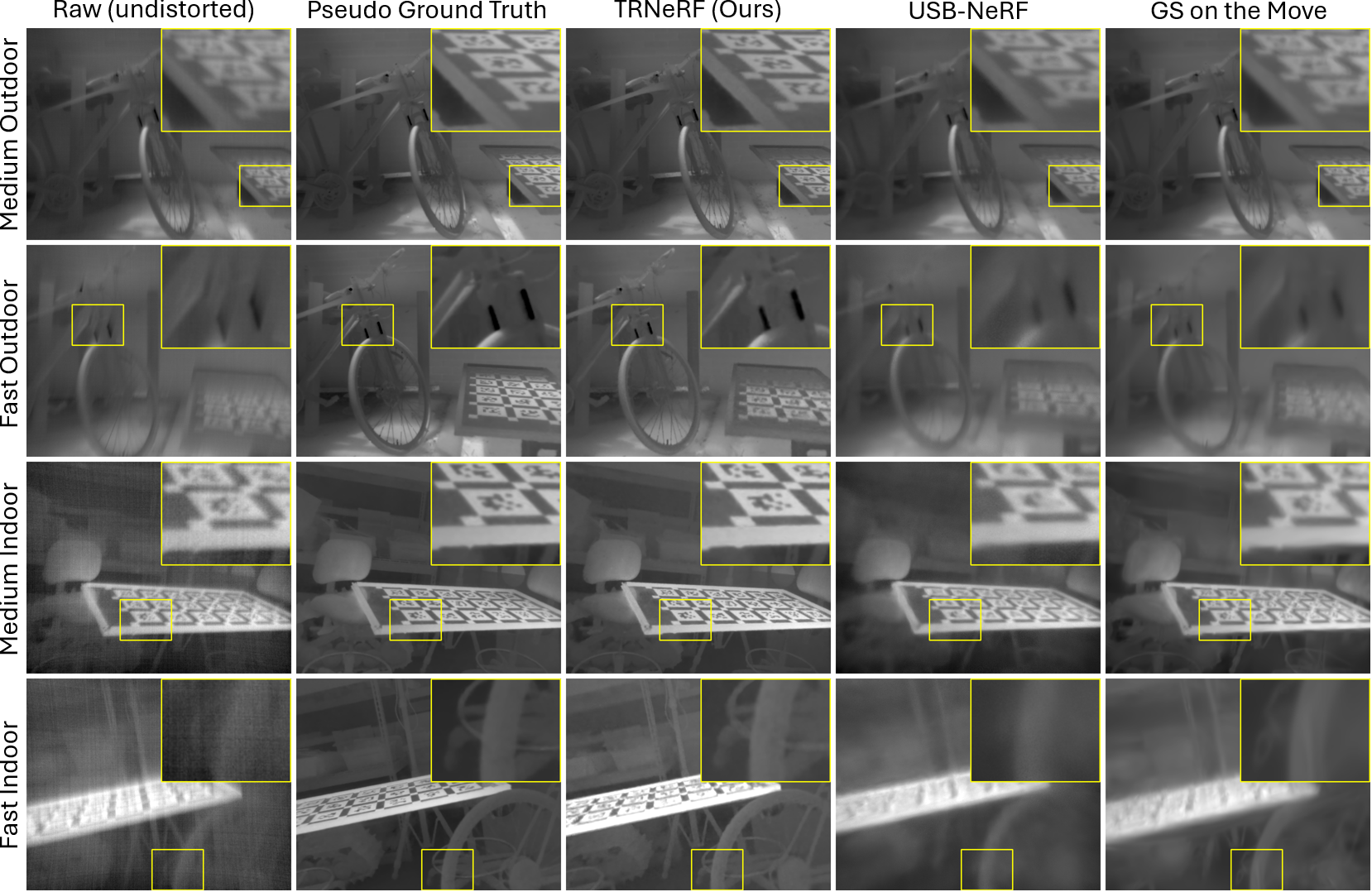

Example Results

Abstract

Thermal cameras offer unique detection capabilities in building inspections, search and rescue operations, and autonomous vehicle perception. Of the different types of thermal cameras, uncooled microbolometers are often chosen due to their relative affordability, small size, and low power consumption. However, microbolometers suffer from motion blur, rolling shutter distortions, and fixed pattern noise, which limit the conditions of their use. Nearly all prior methods for microbolometer image restoration account for only one of these degradations, and current techniques addressing microbolometer blur and rolling shutter are limited. This paper presents TRNeRF, a thermal image restoration method that jointly addresses all three degradations by incorporating the microbolometer image formation model with Neural Radiance Fields (NeRFs). To evaluate TRNeRF, this paper introduces a new real-world dataset that is uniquely designed to support two novel quantitative evaluation strategies for thermal image restoration. Experiments demonstrate that TRNeRF is able to recover sharp, global shutter, and clear thermal images, even under extremely aggressive camera motion that causes existing methods to fail.

Rendering Pipeline

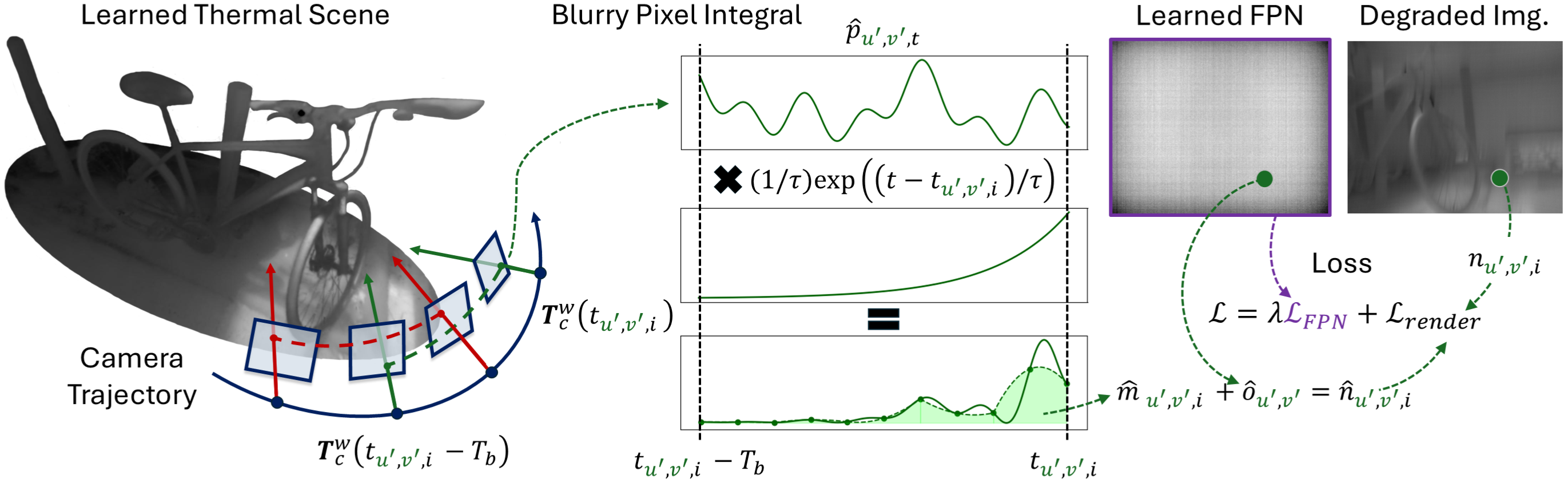

We train an accurate representation of the thermal scene by incorporating motion blur, rolling shutter distortions, and fixed pattern noise into the NeRF rendering pipeline such that the rendered pixels can be supervised by the real captured images subject to degradation. The left side of this figure depicts the learned scene and the views traversed by two pixels read out at different times. The remaining sections show how a single degraded pixel value is estimated and contributes to the loss. At the inference stage, the augmentations to the rendering pipeline are removed and the trained model can be used to directly render restored images.

Dataset

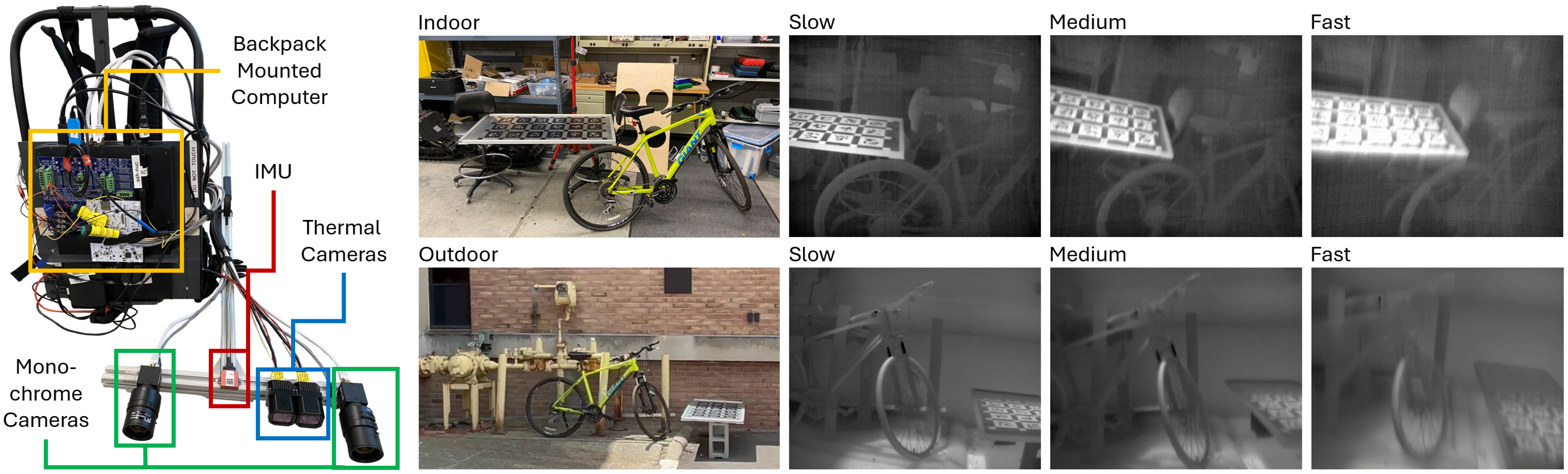

To collect our dataset, we designed a rig with a backpack mounted computer and hand-held sensor platform including two microbolometer thermal cameras, two monochrome cameras, and an IMU (included for future work). The thermal cameras are placed side-by-side to support the comparison of different camera settings. The dataset includes a sunny outdoor scene with high thermal contrast, and an air-conditioned indoor scene with low thermal contrast. For each scene there are three recorded sequences, denoted slow, medium, and fast, with increasingly aggressive six degree-of-freedom camera motion.

Evaluation Methods

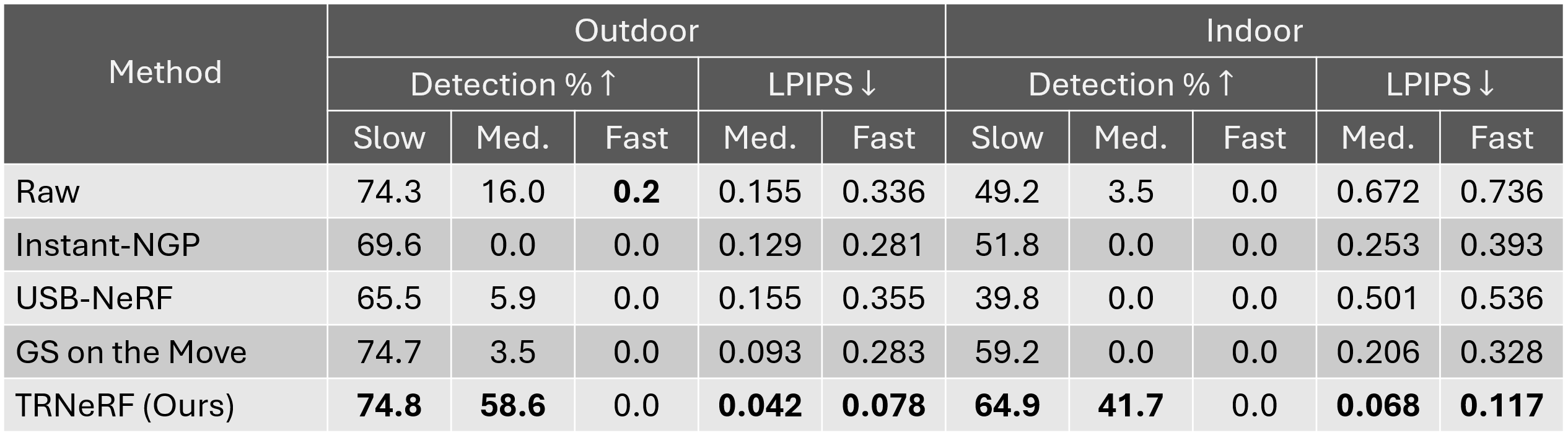

We introduce two novel quantitative methods for evaluating thermal image restoration. The first method utilizes a multi-spectral Aprilgrid board that is placed in each scene. The board can be detected in both the sharp visible spectrum images and the restored thermal images. We use the the detections in the monochrome images to project the board's corners into the thermal images. We then compute the percentage of successfully detected corners in the thermal images to assess how well areas of the board were restored. The second method involves rendering pseudo ground truth images using a standard NeRF model trained on the relatively undegraded slow sequence thermal images (following the removal of fixed pattern noise through a two point non-uniformity correction). We compute the LPIPS metric between the restored and pseudo ground truth images.

Ablation Study

Our ablation study demonstrates that it is necessary to account for all three degradations and that seemingly subtle details can have a substantial impact on restoration performance. In particular, onboard image filters, which were enabled by default in our thermal cameras, can produce significant artifacts in the restored images.

Citation

@misc{trnerf2024,
title={TRNeRF: Restoring Blurry, Rolling Shutter, and Noisy Thermal Images with Neural Radiance Fields},
author={Spencer Carmichael and Manohar Bhat and Mani Ramanagopal and Austin Buchan and Ram Vasudevan and Katherine A. Skinner},
year={2024},
eprint={TODO:PLACEHOLDER},
archivePrefix={arXiv},
primaryClass={cs.CV}}
